HTTP2 en pratique

Benjamin Rabiller

Nov 29, 2018 13 min read webperf

Image credit: thehackernews.com

Introduction à HTTP/2

Nous connaissons maintenant tous les avantages du protocole HTTP/2 (h2/h2c).

En résumé HTTP/2 c’est :

HPACK : Compression des Header
Server Push : preload
Server Hints : prefetch
Transite des données au format binaire
Une seule connexion TCP pour faire passer plusieurs requêtes

Mais alors, pourquoi rédiger cet article ?

Dans mon cadre profesionnel, un client m’a fait part de son impossibilité à faire fonctionner la fonctionnalité PUSH sur son infrastructure hébérgée sur AWS. J’ai donc souhaité approfondir le sujet et de vous partager mon analyse.

La feature PUSH sur le banc d’essai

Définition

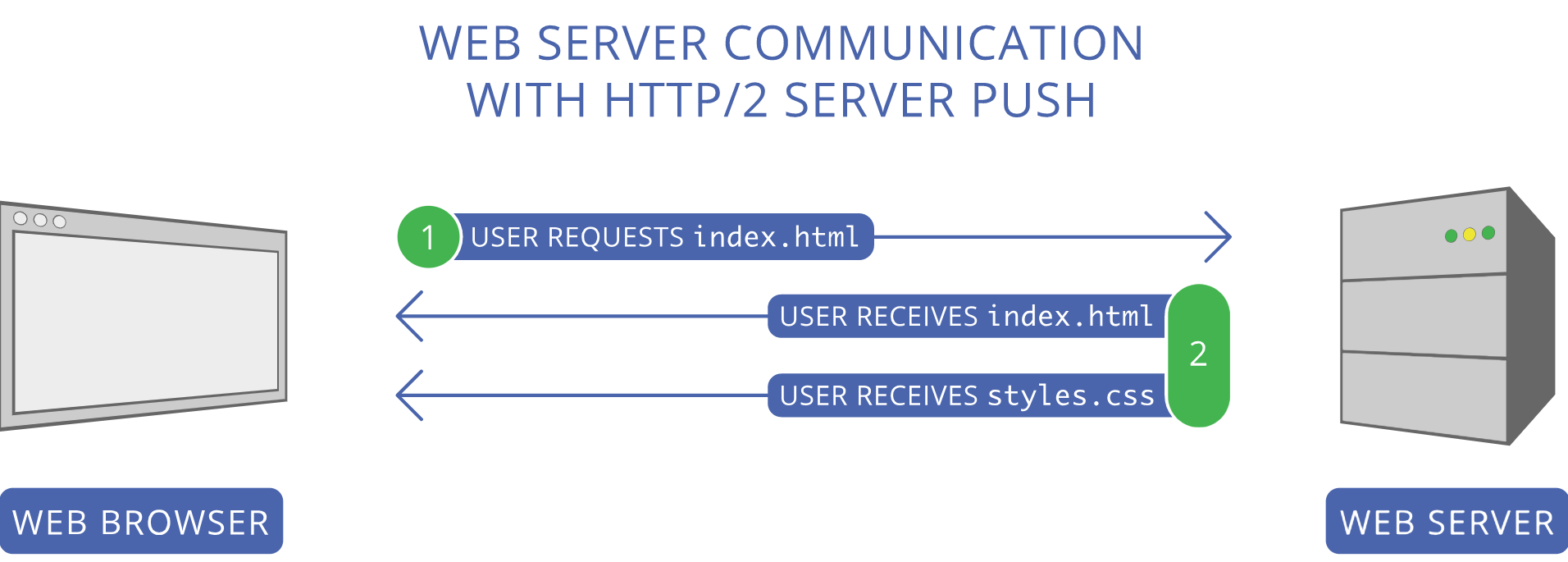

Globalement et sans rentrer dans des détails techniques sur le push HTTP/2, cela permet au client (navigateur web) de recevoir directement sans le demander (comprendre sans réaliser une requête http) du contenu comme des CSS ou bien des JS.

On économise donc pas mal d’allers/retours et le rendu de la page s’effectue en théorie plus rapidement. Ci-dessous une figure simple expliquant le fonctionnement :

png

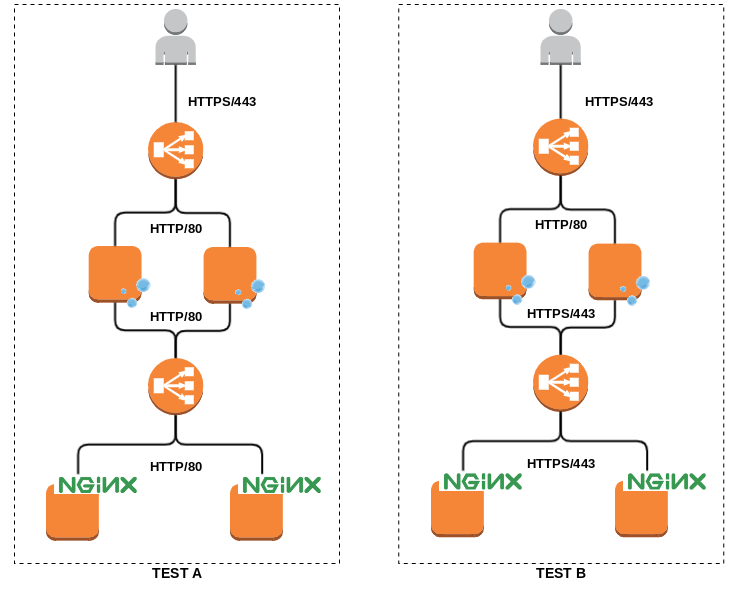

Architectures de test

png

Nos deux architectures de test sont composées de :

Un ALB publique
n serveurs Varnish (version 5.2)
Un ALB interne
n frontaux Nginx

La différence entre ces deux architectures est la présence ou non d’https sur l’ALB interne et les backend Nginx.

Aussi, j’ai bootstrapé une app simple en Symfony 4 et suivi ce tuto pour implémenter le push : https://dunglas.fr/2017/10/symfony-4-http2-push-and-preloading/

Ci-dessous le code HTML de test qui doit me permettre d’exploiter la feature PUSH :

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>Welcome!</title>
    <link rel="stylesheet" href="{{ preload(asset('main.css'), { as: 'style' }) }}">
</head>
<body>
    <main role="main" class="container">
        <h1>Hello World</h1>
    </main>
</body>
</html>

Premier test en passant par l’ALB publique

Architeture A et B


nghttp -ans https://symfony-sample.xxx.net/

id  responseEnd requestStart  process code size request path
 13    +63.90ms        +76us  63.82ms  200   8K /
 15    +69.81ms     +63.91ms   5.90ms  200   91 /main.css

Comme on peut le constater, l’asset main.css n’est pas push sinon il y aurait une petite ‘*’ qui indiquerait le push. Du coup, je procède dans l’autre sens, je vais faire mes tests de la source (Nginx) en remontant, petit à petit pour comprendre d’où vient le problème.

Second test en passant par Nginx

Archi A
- La commande nghttp ne fonctionne tout simplement pas. Aucun retour. Pourquoi ? Tout simplement parce que Nginx ne gère pas HTTP/2 over TCP (h2c) mais uniquement via SSL (h2)
- Résultat : KO
Archi B

root@ip-10-134-168-146 ~]# nghttp -ans https://127.0.0.1:32771/ -v                                                                                                                                                                 [60/1595]
[WARNING]: -a, --get-assets option is ignored because
the binary was not compiled with libxml2.
[  0.000] Connected
The negotiated protocol: h2
[  0.003] recv SETTINGS frame <length=18, flags=0x00, stream_id=0>
          (niv=3)
          [SETTINGS_MAX_CONCURRENT_STREAMS(0x03):128]
          [SETTINGS_INITIAL_WINDOW_SIZE(0x04):65536]
          [SETTINGS_MAX_FRAME_SIZE(0x05):16777215]
[  0.003] recv WINDOW_UPDATE frame <length=4, flags=0x00, stream_id=0>
          (window_size_increment=2147418112)
[  0.003] send SETTINGS frame <length=12, flags=0x00, stream_id=0>
          (niv=2)
          [SETTINGS_MAX_CONCURRENT_STREAMS(0x03):100]
          [SETTINGS_INITIAL_WINDOW_SIZE(0x04):65535]
[  0.003] send SETTINGS frame <length=0, flags=0x01, stream_id=0>
          ; ACK
          (niv=0)
[  0.003] send PRIORITY frame <length=5, flags=0x00, stream_id=3>
          (dep_stream_id=0, weight=201, exclusive=0)
[  0.003] send PRIORITY frame <length=5, flags=0x00, stream_id=5>
          (dep_stream_id=0, weight=101, exclusive=0)
[  0.003] send PRIORITY frame <length=5, flags=0x00, stream_id=7>
          (dep_stream_id=0, weight=1, exclusive=0)
[  0.003] send PRIORITY frame <length=5, flags=0x00, stream_id=9>
          (dep_stream_id=7, weight=1, exclusive=0)
[  0.003] send PRIORITY frame <length=5, flags=0x00, stream_id=11>
          (dep_stream_id=3, weight=1, exclusive=0)
[  0.003] send HEADERS frame <length=39, flags=0x25, stream_id=13>
          ; END_STREAM | END_HEADERS | PRIORITY
          (padlen=0, dep_stream_id=11, weight=16, exclusive=0)
          ; Open new stream
          :method: GET
          :path: /
          :scheme: https
          :authority: 127.0.0.1:32771
          accept: */*
          accept-encoding: gzip, deflate
          user-agent: nghttp2/1.21.1
[  0.009] recv SETTINGS frame <length=0, flags=0x01, stream_id=0>                                                                                                                                                                   [20/1595]
          ; ACK
          (niv=0)
[  0.026] recv (stream_id=13) :method: GET
[  0.026] recv (stream_id=13) :path: /main.css
[  0.026] recv (stream_id=13) :scheme: https
[  0.026] recv (stream_id=13) :authority: 127.0.0.1:32771
[  0.026] recv (stream_id=13) accept-encoding: gzip, deflate
[  0.026] recv (stream_id=13) user-agent: nghttp2/1.21.1
[  0.026] recv PUSH_PROMISE frame <length=52, flags=0x04, stream_id=13>
          ; END_HEADERS
          (padlen=0, promised_stream_id=2)
[  0.026] recv (stream_id=13) :status: 200
[  0.026] recv (stream_id=13) server: nginx
[  0.026] recv (stream_id=13) content-type: text/html; charset=UTF-8
[  0.026] recv (stream_id=13) vary: Accept-Encoding
[  0.026] recv (stream_id=13) cache-control: no-cache, private
[  0.026] recv (stream_id=13) date: Wed, 28 Nov 2018 12:23:09 GMT
[  0.026] recv (stream_id=13) link: </main.css>; rel="preload"; as="style"
[  0.026] recv (stream_id=13) x-debug-token: e105ad
[  0.026] recv (stream_id=13) x-debug-token-link: https://127.0.0.1:32771/_profiler/e105ad
[  0.026] recv (stream_id=13) content-encoding: gzip
[  0.026] recv HEADERS frame <length=210, flags=0x04, stream_id=13>
          ; END_HEADERS
          (padlen=0)
          ; First response header
[  0.026] recv DATA frame <length=8192, flags=0x00, stream_id=13>
[  0.026] recv DATA frame <length=900, flags=0x01, stream_id=13>
          ; END_STREAM
[  0.029] recv (stream_id=2) :status: 200
[  0.029] recv (stream_id=2) server: nginx
[  0.029] recv (stream_id=2) date: Wed, 28 Nov 2018 12:23:09 GMT
[  0.029] recv (stream_id=2) content-type: text/css
[  0.029] recv (stream_id=2) last-modified: Wed, 28 Nov 2018 09:16:35 GMT
[  0.029] recv (stream_id=2) vary: Accept-Encoding
[  0.029] recv (stream_id=2) etag: W/"5bfe5cf3-4f"
[  0.029] recv (stream_id=2) content-encoding: gzip
[  0.029] recv HEADERS frame <length=112, flags=0x04, stream_id=2>
          ; END_HEADERS
          (padlen=0)
          ; First push response header
[  0.029] recv DATA frame <length=91, flags=0x01, stream_id=2>
          ; END_STREAM
[  0.029] send GOAWAY frame <length=8, flags=0x00, stream_id=0>
          (last_stream_id=2, error_code=NO_ERROR(0x00), opaque_data(0)=[])
***** Statistics *****

Request timing:
  responseEnd: the  time  when  last  byte of  response  was  received
               relative to connectEnd
 requestStart: the time  just before  first byte  of request  was sent
               relative  to connectEnd.   If  '*' is  shown, this  was
               pushed by server.
      process: responseEnd - requestStart
         code: HTTP status code
         size: number  of  bytes  received as  response  body  without
               inflation.
          URI: request URI

see http://www.w3.org/TR/resource-timing/#processing-model

sorted by 'complete'

id  responseEnd requestStart  process code size request path
 13    +23.49ms       +727us  22.76ms  200   8K /
  2    +26.76ms *   +23.13ms   3.63ms  200   91 /main.css

Ici pas de souci, on voit bien que le main.css est bien PUSH
Résultat : OK

Troisième test en passant par l’ALB interne

Archi A
- Idem que pour le Nginx sur le port 80, pas d’HTTP/2
- Résultat : KO
Archi B

nghttp -ans -H "Host: symfony-sample.xxx.net" https://internal-xxx-web-alb-21283442.eu-west-3.elb.amazonaws.com/ -v                                          [56/574]
[  0.004] Connected
The negotiated protocol: h2
[  0.007] recv SETTINGS frame <length=18, flags=0x00, stream_id=0>
          (niv=3)
          [SETTINGS_MAX_CONCURRENT_STREAMS(0x03):128]
          [SETTINGS_INITIAL_WINDOW_SIZE(0x04):65536]
          [SETTINGS_MAX_FRAME_SIZE(0x05):16777215]
[  0.007] recv WINDOW_UPDATE frame <length=4, flags=0x00, stream_id=0>
          (window_size_increment=2147418112)
[  0.007] send SETTINGS frame <length=12, flags=0x00, stream_id=0>
          (niv=2)
          [SETTINGS_MAX_CONCURRENT_STREAMS(0x03):100]
          [SETTINGS_INITIAL_WINDOW_SIZE(0x04):65535]
[  0.007] send SETTINGS frame <length=0, flags=0x01, stream_id=0>
          ; ACK
          (niv=0)
[  0.007] send PRIORITY frame <length=5, flags=0x00, stream_id=3>
          (dep_stream_id=0, weight=201, exclusive=0)
[  0.007] send PRIORITY frame <length=5, flags=0x00, stream_id=5>
          (dep_stream_id=0, weight=101, exclusive=0)
[  0.007] send PRIORITY frame <length=5, flags=0x00, stream_id=7>
          (dep_stream_id=0, weight=1, exclusive=0)
[  0.007] send PRIORITY frame <length=5, flags=0x00, stream_id=9>
          (dep_stream_id=7, weight=1, exclusive=0)
[  0.007] send PRIORITY frame <length=5, flags=0x00, stream_id=11>
          (dep_stream_id=3, weight=1, exclusive=0)
[  0.007] send HEADERS frame <length=107, flags=0x25, stream_id=13>
          ; END_STREAM | END_HEADERS | PRIORITY
          (padlen=0, dep_stream_id=11, weight=16, exclusive=0)
          ; Open new stream
          :method: GET
          :path: /
          :scheme: https
          :authority: internal-xxx-web-alb-21283442.eu-west-3.elb.amazonaws.com
          accept: */*
          accept-encoding: gzip, deflate
          user-agent: nghttp2/1.18.1
          host: symfony-sample.xxx.net
[  0.007] recv SETTINGS frame <length=0, flags=0x01, stream_id=0>                                                                                                                                                                    [17/574]
          ; ACK
          (niv=0)
[  0.034] recv (stream_id=13) :status: 200
[  0.034] recv (stream_id=13) date: Wed, 28 Nov 2018 12:25:49 GMT
[  0.034] recv (stream_id=13) content-type: text/html; charset=UTF-8
[  0.034] recv (stream_id=13) server: nginx
[  0.034] recv (stream_id=13) vary: Accept-Encoding
[  0.034] recv (stream_id=13) cache-control: no-cache, private
[  0.034] recv (stream_id=13) link: </main.css>; rel="preload"; as="style"
[  0.034] recv (stream_id=13) x-debug-token: 3616a2
[  0.034] recv (stream_id=13) x-debug-token-link: https://internal-xxx-web-alb-21283442.eu-west-3.elb.amazonaws.com/_profiler/3616a2
[  0.034] recv (stream_id=13) content-encoding: gzip
[  0.034] recv HEADERS frame <length=260, flags=0x04, stream_id=13>
          ; END_HEADERS
          (padlen=0)
          ; First response header
[  0.035] recv DATA frame <length=8192, flags=0x00, stream_id=13>
[  0.035] recv DATA frame <length=956, flags=0x00, stream_id=13>
[  0.035] recv DATA frame <length=0, flags=0x01, stream_id=13>
          ; END_STREAM
[  0.035] send HEADERS frame <length=21, flags=0x25, stream_id=15>
          ; END_STREAM | END_HEADERS | PRIORITY
          (padlen=0, dep_stream_id=3, weight=32, exclusive=0)
          ; Open new stream
          :method: GET
          :path: /main.css
          :scheme: https
          :authority: internal-xxx-web-alb-21283442.eu-west-3.elb.amazonaws.com
          accept: */*
          accept-encoding: gzip, deflate
          user-agent: nghttp2/1.18.1
          host: symfony-sample.xxx.net
[  0.039] recv (stream_id=15) :status: 200
[  0.039] recv (stream_id=15) date: Wed, 28 Nov 2018 12:25:49 GMT
[  0.039] recv (stream_id=15) content-type: text/css
[  0.039] recv (stream_id=15) server: nginx
[  0.039] recv (stream_id=15) last-modified: Wed, 28 Nov 2018 09:16:35 GMT
[  0.039] recv (stream_id=15) vary: Accept-Encoding
[  0.039] recv (stream_id=15) etag: W/"5bfe5cf3-4f"
[  0.039] recv (stream_id=15) content-encoding: gzip
[  0.039] recv HEADERS frame <length=133, flags=0x04, stream_id=15>
          ; END_HEADERS
          (padlen=0)
          ; First response header
[  0.039] recv DATA frame <length=91, flags=0x00, stream_id=15>
[  0.039] recv DATA frame <length=0, flags=0x01, stream_id=15>
          ; END_STREAM
[  0.039] send GOAWAY frame <length=8, flags=0x00, stream_id=0>
          (last_stream_id=0, error_code=NO_ERROR(0x00), opaque_data(0)=[])
***** Statistics *****

Request timing:
  responseEnd: the  time  when  last  byte of  response  was  received
               relative to connectEnd
 requestStart: the time  just before  first byte  of request  was sent
               relative  to connectEnd.   If  '*' is  shown, this  was
               pushed by server.
      process: responseEnd - requestStart
         code: HTTP status code
         size: number  of  bytes  received as  response  body  without
               inflation.
          URI: request URI

see http://www.w3.org/TR/resource-timing/#processing-model

sorted by 'complete'

id  responseEnd requestStart  process code size request path
 13    +28.56ms       +179us  28.38ms  200   8K /
 15    +32.55ms     +28.58ms   3.97ms  200   91 /main.css

HTTP/2 fonctionnel mais pas de PUSH
Résultat : KO</span

Quatrième test en passant par Varnish

Archi A et B
- La commande nghttp ne renvoi rien
- Je test alors avec curl :

curl -k -svo /dev/null --http2 -H "Host: symfony-sample.xxx.net" http://127.0.0.1/httpprobe
*   Trying 127.0.0.1...
* TCP_NODELAY set
* Connected to 127.0.0.1 (127.0.0.1) port 80 (#0)
> GET /httpprobe HTTP/1.1
> Host: -symfony-sample.xxx.net
> User-Agent: curl/7.52.1
> Accept: */*
> Connection: Upgrade, HTTP2-Settings
> Upgrade: h2c
> HTTP2-Settings: AAMAAABkAARAAAAA
>
< HTTP/1.1 200 OK
< Date: Wed, 28 Nov 2018 13:02:46 GMT
< Server: Varnish
< X-Varnish: 40565
< Content-Length: 1000
< Accept-Ranges: bytes
< Connection: keep-alive
<
{ [1000 bytes data]
* Curl_http_done: called premature == 0
* Connection #0 to host 127.0.0.1 left intact

Toujours rien ? Pas d’http/2 ? Pourtant Varnish me dit que depuis le version 5.0, h2c est implémenté. Allons faire un petit tour dans la RFC pour tenter de comprendre : https://tools.ietf.org/html/rfc7540#section-3.2

3.2.  Starting HTTP/2 for "http" URIs

   A client that makes a request for an "http" URI without prior
   knowledge about support for HTTP/2 on the next hop uses the HTTP
   Upgrade mechanism (Section 6.7 of [RFC7230]).  The client does so by
   making an HTTP/1.1 request that includes an Upgrade header field with
   the "h2c" token.  Such an HTTP/1.1 request MUST include exactly one
   HTTP2-Settings (Section 3.2.1) header field.

   For example:

     GET / HTTP/1.1
     Host: server.example.com
     Connection: Upgrade, HTTP2-Settings
     Upgrade: h2c
     HTTP2-Settings: <base64url encoding of HTTP/2 SETTINGS payload>

   Requests that contain a payload body MUST be sent in their entirety
   before the client can send HTTP/2 frames.  This means that a large
   request can block the use of the connection until it is completely
   sent.

   If concurrency of an initial request with subsequent requests is
   important, an OPTIONS request can be used to perform the upgrade to
   HTTP/2, at the cost of an additional round trip.

      A server that does not support HTTP/2 can respond to the request as
   though the Upgrade header field were absent:

     HTTP/1.1 200 OK
     Content-Length: 243
     Content-Type: text/html

     ...

   A server MUST ignore an "h2" token in an Upgrade header field.
   Presence of a token with "h2" implies HTTP/2 over TLS, which is
   instead negotiated as described in Section 3.3.

   A server that supports HTTP/2 accepts the upgrade with a 101
   (Switching Protocols) response.  After the empty line that terminates
   the 101 response, the server can begin sending HTTP/2 frames.  These
   frames MUST include a response to the request that initiated the
   upgrade.

   For example:

     HTTP/1.1 101 Switching Protocols
     Connection: Upgrade
     Upgrade: h2c

     [ HTTP/2 connection ...

   The first HTTP/2 frame sent by the server MUST be a server connection
   preface (Section 3.5) consisting of a SETTINGS frame (Section 6.5).
   Upon receiving the 101 response, the client MUST send a connection
   preface (Section 3.5), which includes a SETTINGS frame.

   The HTTP/1.1 request that is sent prior to upgrade is assigned a
   stream identifier of 1 (see Section 5.1.1) with default priority
   values (Section 5.3.5).  Stream 1 is implicitly "half-closed" from
   the client toward the server (see Section 5.1), since the request is
   completed as an HTTP/1.1 request.  After commencing the HTTP/2
   connection, stream 1 is used for the response.

Pour résumer cette note de la RFC, Varnish est censé nous renvoyer un code “101 Switching Protocols” pour passer en http2. Mais pourquoi donc il ne le fait pas ?! Après quelques recherches, je tombe sur cette commande magique :

varnishadm param.show feature
feature
        Value is: none (default)

        Enable/Disable various minor features.
           none                       Disable all features.

        Use +/- prefix to enable/disable individual feature:
           short_panic                Short panic message.
           wait_silo                  Wait for persistent silo.
           no_coredump                No coredumps.
           esi_ignore_https           Treat HTTPS as HTTP in
                                      ESI:includes
           esi_disable_xml_check      Don't check of body looks like
                                      XML
           esi_ignore_other_elements  Ignore non-esi XML-elements
           esi_remove_bom             Remove UTF-8 BOM
           https_scheme               Also split https URIs
           http2                      Support HTTP/2 protocol

Donc http2 n’est pas activé par défaut dans Varnish ! Aie Aie aie …

Bon une fois activé ça donne ça :

varnishadm param.show feature
feature
        Value is: +http2
        Default is: none
....

On reteste notre curl :

curl -k -svo /dev/null --http2 -H "Host: symfony-sample.xxx.net" http://127.0.0.1/httpprobe
*   Trying 127.0.0.1...
* TCP_NODELAY set
* Connected to 127.0.0.1 (127.0.0.1) port 80 (#0)
> GET /httpprobe HTTP/1.1
> Host: symfony-sample.xxx.net
> User-Agent: curl/7.52.1
> Accept: */*
> Connection: Upgrade, HTTP2-Settings
> Upgrade: h2c
> HTTP2-Settings: AAMAAABkAARAAAAA
>
< HTTP/1.1 101 Switching Protocols
< Connection: Upgrade
< Upgrade: h2c
* Received 101
* Using HTTP2, server supports multi-use
* Connection state changed (HTTP/2 confirmed)
* Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0
* Connection state changed (MAX_CONCURRENT_STREAMS updated)!
< HTTP/2 200
< date: Wed, 28 Nov 2018 13:04:26 GMT
< server: Varnish
< x-varnish: 12
< content-length: 1000
< accept-ranges: bytes
<
{ [1000 bytes data]
* Curl_http_done: called premature == 0
* Connection #0 to host 127.0.0.1 left intact

Yes yes yes ! On a notre Switching Protocols !
Bon par contre toujours pas de PUSH …
Résultat : KO

Résultat final

Malgré avoir activé http/2 de bout en bout, impossible de faire fonctionner PUSH …

Cela s’explique tout simplement (je pense) par le fait que les reverses proxy ne gèrent pas HTTP/2 pour les connexions aux backends.

L’apport d’HTTP/2 est bien réel pour le client mais quasi nul pour les connexions entre nos différents reverses proxy. Dommage tout de même car à priori, cela limite l’utilisation de certaines features dont le PUSH…

Avec ce type d’infrastructure, il nous sera impossible de bénéficier de l’ensemble des possibilités proposées par le protocol.

Ci-dessous un petit résumé par middleware testés :

Varnish
- Support d’http/2 mais pas par défaut. Il faut donc bien penser à l’activer.

Nginx

Nginx ne supporte que HTTP2 over SSL (h2) et uniquement côté client

HTTP/2 n’est donc pas supporté avec un proxy_pass. Nginx se justifie par le fait qu’avec des réseaux à faibles latences et keepalive activé, http2 n’est pas utile :

At the moment, we only support HTTP/2 on the client side. You can’t configure HTTP/2 with proxy_pass.
But what is the point of HTTP/2 on the backend side? Because as you can see from the benchmarks, there’s not much benefit in HTTP/2 for low‑latency networks such as upstream connections.
Also, in NGINX you have the keepalive module, and you can configure a keepalive cache. The main performance benefit of HTTP/2 is to eliminate additional handshakes, but if you do that already with a keepalive cache, you don’t need HTTP/2 on the upstream side.

AWS ALB
- Idem que Nginx, la connexion vers les backends passent en HTTP/1 et HTTP/2 n’est supporté qu’uniquement côté client avec un listenner HTTPS : https://docs.aws.amazon.com/elasticloadbalancing/latest/application/load-balancer-listeners.html#listener-configuration
- De plus, impossible d’utiliser la fonctionnalité PUSH :

  Application Load Balancers provide native support for HTTP/2 with HTTPS listeners. You can send up to 128 requests in parallel using one HTTP/2 connection. The load balancer converts these to individual HTTP/1.1 requests and distributes them across the healthy targets in the target group. Because HTTP/2 uses front-end connections more efficiently, you might notice fewer connections between clients and the load balancer. You can't use the server-push feature of HTTP/2.

webperf http2 varnish nginx aws
